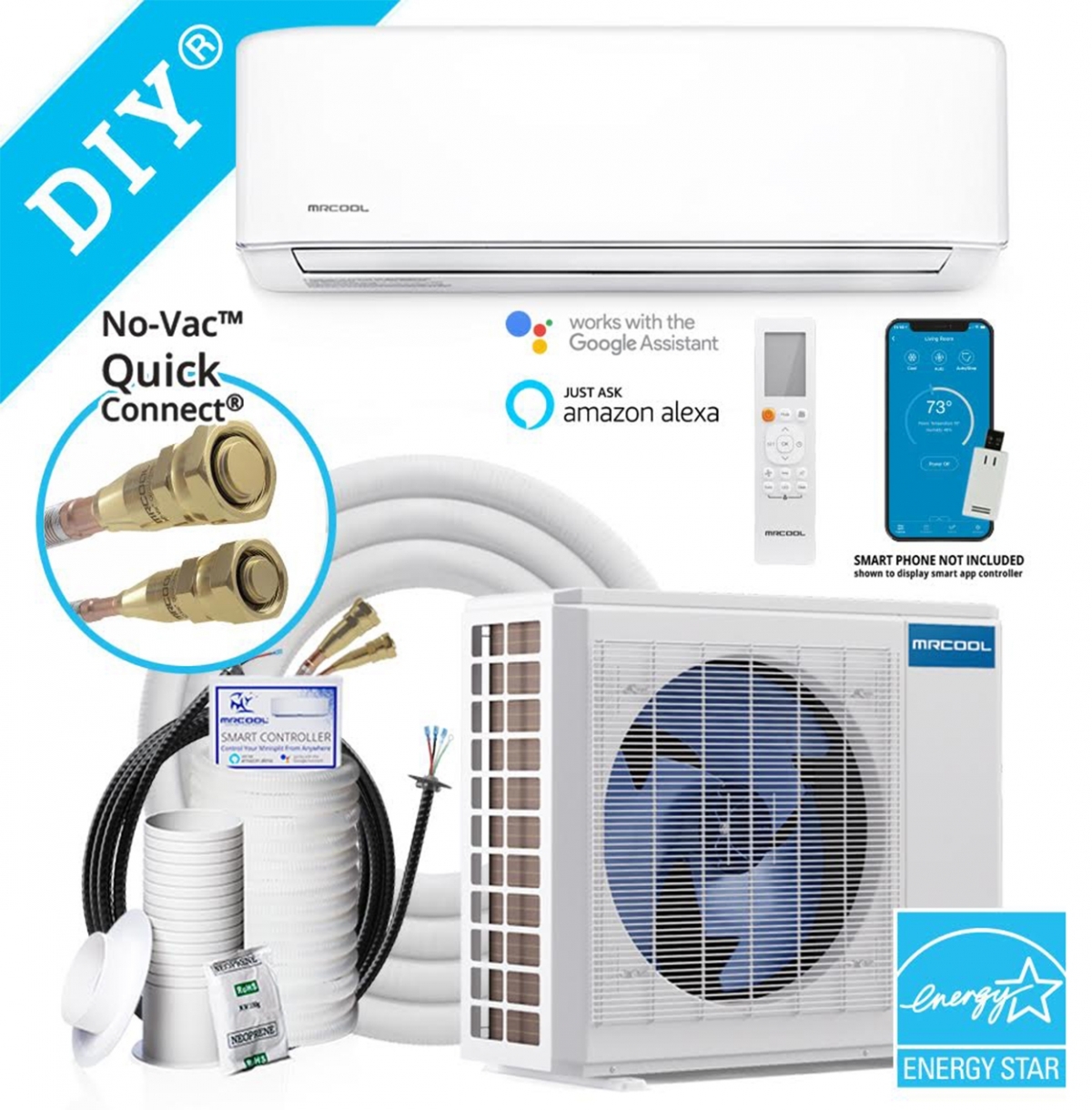

The MRCOOL® 4th Generation DIY 18K BTU, 22 SEER Ductless Heat Pump system offers a complete solution to your home’s heating and cooling needs. This system can heat & cool an area up to 750 sq. ft and is capable of an Energy Star certified, 22 SEER efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged 25 ft. line set, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MrCool system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MrCool stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.
•Up to 22.7 SEER2
•Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
•Variable-speed DC inverter compressor technology cuts operating costs
•R-410A environmentally friendly refrigerant
•Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
SEER 22
SEER2 22.7
EER 12.5
EER2 12.6
COP 47 3.74
HSPF hspf4/hspf5 : 11.5/9
HSPF2 hspf2-4/hspf2-5 : 9.8/7.2
CFM 465.29/361.76/304.12
Tonnage 1.5
Cooling CAPACITY 18000 BTU
Heating CAPACITY 18000 BTU
Voltage 208-230 V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 30 A
Min Circut Amactity 18 A
Color White
Color Family White
Rated Load 0.25 A
Max Coverage Area Up to 750 sqft
Zone Capacity 1
Refrigerant Type R-410A
Refrigerant Voume 56.44 oz
Decibel Rating 44.5/37/31
Decibel Rating Low 31 dBA
Decibel Rating High 44.5 dBA
Air FLow Direction 4-W
Oscillation Yes
Inverter Yes
Min Ambient Cool -13F - 122F
Min Ambient Heat -13F - 75F
Line Set Length 25ft (iuncluded)
Max LIne Set Length 75 ft (not included)
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 810/720
Blower Motor RPM 1120/950/700
Auxiliart Heater Included No
Auxiliart Heater Available No
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
WIFI Compability Yes
App Compatability Yes
Work With iOS Yes
Work With Andriod Yes
Remote Control Included Yes
UL Listed Yes
Energy Star Certified Yes
AHRI Certified Yes
Registered Warranty Limited Lifetime Compressor
Base Warranty 5-year Parts/7-year Compressor
Base Part Warranty 5-year Parts
Registered Compressor Warranty Limited Lifetime
Compressor
Base Compressor Warranty 7-year Compressor
Has Batteries Yes
Contains Electronics Yes
Cotains Chemicals Yes
Contains Aerosols Yes
Contains Compressed Gas Yes
Proposition 65 Warning Yes
Restricted States GU;PR;VI
Condenser Depth 13.46 in
Condenser Height 26.50 in
Condenser Width 35.04 in
Condenser Weight 94.36 lbs
Air Handler Depth 8.90 in
Air Handler Height 13.19 in
Air Handler Width 42.52 in
Air Handler Weight 34.61 lbs
